Under development

This feature is under development, so changes may occur.

Login Connect enables a merchant to do card enrollment and card recognition. Login Connect builds on the standard Login flow, a user logs

in with Vipps or MobilePay and consents to share their cards with the merchant.

Login Connect has three parts:

  • Card enrollment: The user logs in and consents to share their cards. You get a webhook when the cards are enrolled.
  • Card recognition: Every time an enrolled card is used in one of your stores, you get a transaction notification on your webhook.
  • Manage enrolled cards: Use the Login Connect Merchant API to show the user their enrolled cards and let them remove cards.

The user's sub connects all three parts. The sub you receive from userinfo during card enrollment is the same sub you receive in every transaction notification, and the same sub you use to manage the user's cards.

Prerequisites​

Before you start, make sure you have the following in place:

NameEvent type
Card enrollment completedlogin.connect.card-enrollment.completed.v1
Transaction notificationlogin.connect.transaction.notification.v1

The Webhooks API returns a secret used to verify the HMAC signature on each incoming webhook. Store it securely, and verify the signature before trusting any payload. See How to authenticate the webhook event.

Card enrollment​

In the card enrollment flow, the user logs in with Vipps or MobilePay and consents to share their cards with you. We enroll the shared cards and tell you the result on your webhook.

Card enrollment flow

100%
  1. Merchant starts a login with the paymentSourceReferences scope.
  2. Vipps MobilePay asks the customer to log in and consent in the Vipps or MobilePay app.
  3. Customer consents to share cards and user data.
  4. Merchant exchanges the code for tokens at the token endpoint.
  5. Merchant calls the userinfo endpoint.
  6. Vipps MobilePay returns sub, user data, and payment_sources_details.
  7. Vipps MobilePay enrolls the cards.
  8. Vipps MobilePay sends the card enrollment completed webhook with sub and the list of cards to the merchant.

1. Start the login with the paymentSourceReferences scope​

Login Connect is an extension of the standard Login flow, so the integration is mostly the same as a regular Login integration. The main difference is that the merchant must request the paymentSourceReferences scope to trigger the Login Connect flow. Request it together with the other scopes you need, such as openid, name, and email.

The user will be prompted to consent to share their cards with the merchant during the login flow. The user chooses which cards and accounts to share:

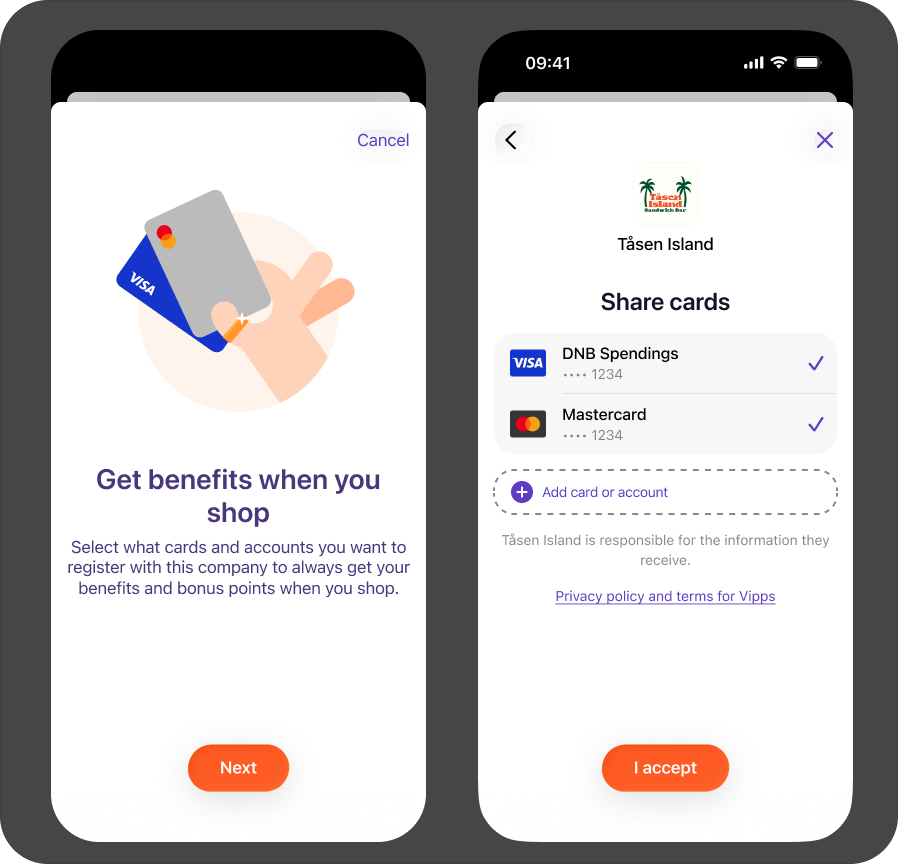

Login Connect consent screens

Login Connect consent screens: an intro screen explaining the benefits ("Get benefits when you shop"), followed by a screen where the user selects which cards and accounts to share.

2. Get tokens and fetch userinfo​

Complete the login as usual: exchange the code for tokens, then call the userinfo endpoint with the access token.

The userinfo response will include a payment_sources_details array, where each entry has a cardId identifying a payment source the user consented to share. For example:

{
    "sub": "126684df-c056-4625-821d-f2905febe3f9",
    "payment_sources_details": [
        {
            "cardId": "a91b26e4-a833-4618-84f8-c5e2a94545bb"
        },
        {
            "cardId": "0736ffb6-7b12-4041-a3fd-a75ec13451ec"
        },
        {
            "cardId": "54f1a590-11f7-4614-bac8-dadac6cd665c"
        }
    ]
}
FieldDescription
subThe user's unique ID for your sales unit. Store it with the user's profile, since it is the key that links transaction notifications back to this user.
payment_sources_details[].cardIdIdentifies a payment source the user consented to share. The card enrollment completed webhook uses the same value as cards[].cardId.

3. Receive the card enrollment completed webhook​

After the login is completed, we enroll the shared cards. When enrollment is done, we send one login.connect.card-enrollment.completed.v1 event to your webhook for the user. The event lists every card the user shared, with the enrollment result for each card.

FieldTypeDescription
subStringThe user's unique ID for your sales unit. Same as sub in the userinfo response.
sessionIdStringIdentifies the login session the enrollment belongs to.
cardsArrayOne entry per card the user shared.
cards[].cardIdStringThe enrolled card. Same as cardId in the userinfo response.
cards[].cardLinkStatusStringThe result of the enrollment. LINKED means the card is enrolled and can be recognized. FAILED means the card could not be enrolled.
cards[].timestampStringWhen the enrollment of this card completed, in ISO 8601 UTC format.

Example:

{
  "sub": "126684df-c056-4625-821d-f2905febe3f9",
  "sessionId": "7e5f72fc-4986-48dc-9505-f010b869d2a7",
  "cards": [
    {
      "cardId": "a91b26e4-a833-4618-84f8-c5e2a94545bb",
      "cardLinkStatus": "LINKED",
      "timestamp": "2026-09-08T12:30:00Z"
    },
    {
      "cardId": "0736ffb6-7b12-4041-a3fd-a75ec13451ec",
      "cardLinkStatus": "FAILED",
      "timestamp": "2026-09-08T12:30:01Z"
    }
  ]
}

A card with status FAILED will not trigger transaction notifications. The user can share the card again in a later login.

Card recognition​

Once a card is enrolled, we notify you every time the user pays with that card in one of your stores. You do not need to change anything in your stores or payment terminals.

Card recognition flow

100%
  1. Customer pays with an enrolled card in the merchant's store.
  2. The payment is completed through the card network and reaches Vipps MobilePay.
  3. Vipps MobilePay checks that the user's consent is still valid.
  4. Vipps MobilePay sends a transaction notification webhook with sub and cardId to the merchant.

1. Receive the transaction notification​

When an enrolled card is used in one of your stores, we send a login.connect.transaction.notification.v1 event to the webhook you registered in Prerequisites.

FieldTypeDescription
subStringThe user's unique ID for your sales unit. Same as sub from the card enrollment.
cardIdStringThe enrolled card that was used. Same as cards[].cardId in the card enrollment completed webhook.
msnStringThe merchant serial number of the sales unit where the card was used.
amountObjectThe transaction amount, with value in minor units and currency as an ISO 4217 code.
timestampStringWhen the transaction was made, in ISO 8601 UTC format.

Example:

{
  "sub": "126684df-c056-4625-821d-f2905febe3f9",
  "cardId": "a91b26e4-a833-4618-84f8-c5e2a94545bb",
  "msn": "123456",
  "amount": {
    "value": 24900,
    "currency": "NOK"
  },
  "timestamp": "2026-09-08T15:42:10Z"
}

2. Match the notification to your customer​

Use sub to look up the customer in your own systems. It is the same sub you received from userinfo when the user completed the card enrollment, so store it with the user's profile at that point.

Note that sub is unique per sales unit. Different sales units get different sub values for the same user, so match on the sub you received for the sales unit the login was made with.

Manage enrolled cards​

Use the Login Connect Merchant API to show the user their enrolled cards on your website or in your app, and to let them remove a card or leave Login Connect completely. The user is identified by the sub from userinfo.

All requests use the base path https://api.vipps.no/login-connect/v1 and require a merchant access token in the Authorization header. See the Access token API.

Get enrolled cards​

Returns the cards currently enrolled for the user for your sales unit. If the user has no enrolled cards, the response is 200 OK with an empty cards array.

GET https://api.vipps.no/login-connect/v1/users/{sub}/cards
Authorization: Bearer <access token>

Example response:

{
  "cards": [
    {
      "id": "card_01J8Q3K7M2N4P6R9T1V3",
      "scheme": "VISA",
      "maskedPan": "************1234",
      "cardIssuer": "Example Bank",
      "expiryDate": "2028-12"
    },
    {
      "id": "card_01J8Q3K7M2N4P6R9T1W5",
      "scheme": "BANKAXEPT",
      "accountNumber": "12345678901",
      "cardIssuer": "Another Bank"
    }
  ]
}
FieldTypeDescription
idStringOpaque identifier for the enrolled card. Same as cardId in the webhooks. Do not derive card information from it.
schemeStringThe card scheme: VISA, MASTERCARD, or BANKAXEPT.
maskedPanStringMasked card number suitable for display. Returned for Visa and Mastercard cards.
accountNumberStringAccount number of the payment source. Returned for BankAxept cards instead of maskedPan.
cardIssuerStringName of the card issuer, when available.
expiryDateStringCard expiry date formatted as YYYY-MM, when available.

Remove an enrolled card​

Removes one card from the user's enrollment for your sales unit. The removal takes effect immediately, and you will not receive transaction notifications for that card afterwards.

DELETE https://api.vipps.no/login-connect/v1/users/{sub}/cards/{cardId}
Authorization: Bearer <access token>

The response is 204 No Content. The operation is idempotent, so you get 204 No Content even if the card was already removed or was never enrolled for this user.

Unenroll a user​

Removes the user's Login Connect enrollment for your sales unit, including all their enrolled cards. The removal takes effect immediately.

DELETE https://api.vipps.no/login-connect/v1/users/{sub}
Authorization: Bearer <access token>

The response is 204 No Content. The operation is idempotent, so you get 204 No Content even if the user was already unenrolled.

Last updated on
